How a reinforcement learning agent learned to navigate a 10×10 grid — and the surprisingly deep engineering required to make it work.
Reinforcement Learning is learning by trial and error. An agent takes actions in an environment, receives rewards or punishments, and slowly figures out what works.
Agent ──action──▶ Environment
▲ │
└──state, reward◀────┘
There are two fundamentally different families of RL algorithms:
Value-Based — “The Accountant” The agent calculates the exact worth of every possible move. “Is turning left worth 10 points or 2?” The algorithm we use here is DQN (Deep Q-Network) — Q stands for “Quality,” as in the quality of a move. It picks the move with the highest Q-value, every single time — no gambling.
Policy-Gradient — “The Athlete” The agent learns general instincts and outputs a probability distribution over moves. “There’s a 90% chance I should go left.” The famous algorithm here is PPO (Proximal Policy Optimization). The key word “proximal” means it makes small, careful policy updates to avoid catastrophically unlearning what it already knows.
Both approaches have their place. Our journey tested both — and the results were not what we expected.
We started with Tabular Q-Learning — the simplest possible “Accountant” approach. The agent keeps a literal lookup table: one row for every board configuration, one column for each action.
| Agent | Mean Score | Max Score | Table Size |
|---|---|---|---|
| Q-Learning | ~11.0 | 24 (Perfect!) | ~2,000 rows |
| Double Q-Learning | ~14.0 | 24 (More stable) | ~2,000 rows |
On a 5×5 board with a maximum possible score of 24, both agents perform impressively. The Q-table only needs ~2,000 entries to map the entire game.

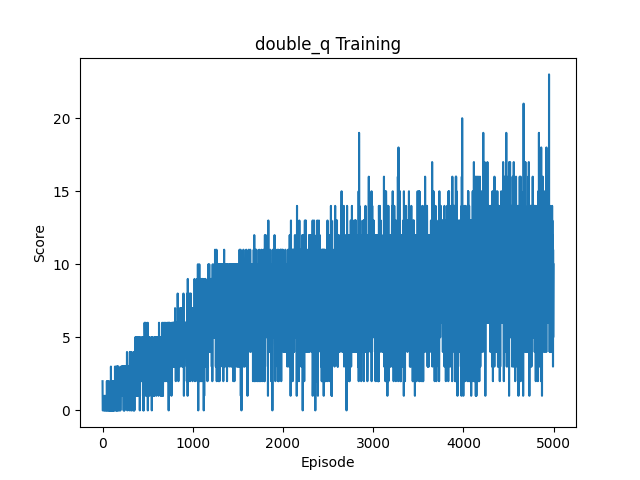

Double Q-Learning is a clever improvement: instead of one table, it cross-checks two. This avoids the tendency to be overconfident about untested moves — a bias called “maximization bias.”
Problem solved? Not quite.
The moment we tried a 10×10 board, tabular methods collapsed completely. The reason is mathematical.
State Space Explosion
A 5×5 board has a manageable number of possible configurations. A 10×10 board with 100 tiles has roughly $2^{100}$ possible unique states — more than the number of atoms in the observable universe. There is literally not enough RAM on Earth to build that table.
The Fix: Deep Q-Networks
We replaced the lookup table with a neural network. Instead of memorizing every board configuration, the neural network generalizes — it learns patterns. If it learns that “walls are dangerous” in the top-left corner, it automatically applies that knowledge to the bottom-right corner without being explicitly taught. This is the “Deep” in DQN.
With DQN, the state explosion problem vanished. Our agent scaled cleanly to 8×8 and 10×10:
| Board | Algorithm | Mean Score | Best Score | Notes |
|---|---|---|---|---|
| 5×5 | Tabular Q-Learning | ~11.0 | 24 ✅ | Perfect score achievable |
| 5×5 | DQN Baseline | 6.94 | 24 | Neural net generalizes board state |
| 8×8 | DQN Baseline | 9.25 | 46 | Trained from scratch, no lookup table |
| 10×10 | Tabular Q-Learning | ❌ | ❌ | RAM overflow — unusable |
| 10×10 | DQN Baseline | 10.54 | 54 | Scales cleanly despite 100 tiles |
The 10×10 column tells the whole story: the method that completely breaks the tabular approach handles the larger board better (higher mean score) by learning generalizable patterns rather than memorizing states one by one.
We needed to solve exploration. Our first instinct was to try a completely different class of algorithm.
Before discovering the ICM, we spent significant time trying to fix the sparse reward problem using two classical techniques. These approaches worked — and taught us some of the project’s most surprising lessons.
We hypothesized that maybe the problem wasn’t the environment — it was the algorithm. PPO (Proximal Policy Optimization) is a Policy-Gradient method. Instead of learning Q-values for every action, it directly learns a probability distribution over actions. We thought its on-policy nature might handle exploration better.
It didn’t. On a 10×10 board without any guidance, PPO achieved a mean score near zero. The exploration problem is not specific to DQN — it is a property of the environment.
Rather than letting the agent learn from scratch, what if it watched an expert first?
Behavioral Cloning is exactly this: we let an expert agent play thousands of games, record every (state, action) pair, and use supervised learning to train PPO to imitate those moves. The PPO Actor’s Cross-Entropy Loss is minimized against the expert’s choices until the clone accuracy reaches ~90%. Only then do we drop PPO into the real environment.
We implemented this in two variants:
train_ppo_with_demos.py — The expert was REINFORCE, a simple policy-gradient algorithm we trained first on the 5×5 board. We then pre-trained PPO’s Critic network on the actual discounted returns from REINFORCE’s best trajectories. This solved the “bootstrap trap” — the Critic starting completely blind — and gave PPO survival instincts from Day 1.
train_ppo_from_dqn.py — We used the trained DQN as the expert instead. DQN demonstrated excellent episode quality, and the behavioral cloning achieved 96% accuracy at reproducing DQN’s moves.
Surprising finding: The DQN-expert gave 96% cloning accuracy. The REINFORCE-expert gave 82%. But PPO performed worse with the DQN expert.
Why? REINFORCE and PPO are both policy-gradient methods — they share the same mathematical “language.” DQN is value-based and makes rigid argmax decisions with a fundamentally different internal structure. When PPO tried to clone DQN’s deterministic reasoning with a probabilistic policy head, the mismatch caused instability. Algorithm compatibility matters more than imitation accuracy.
Instead of forcing the agent to tackle 10×10 immediately, we broke the difficulty into stages:
5×5 (Easy) → 8×8 (Medium) → 10×10 (Goal)
↑ ↑ ↑
Imitation Transfer Transfer
Learning + Adapt + Master
train_ppo_curriculum.py implements this pipeline: REINFORCE trains on 5×5, its best episodes are used to pre-train a PPO agent, and the trained weights are then directly transferred to the 8×8 environment for fine-tuning. The neural network’s weights carry learned skills across board sizes.
This worked — the curriculum-trained PPO significantly outperformed naive PPO on 8×8. But it had two fundamental weaknesses:
These experiments taught us that the right question wasn’t “How do we bootstrap exploration?” — it was “How do we make exploration intrinsically rewarding?”
That insight led directly to the ICM.
We circled back to DQN — which, even without the scaffolding, outperformed curriculum PPO on raw mean score — and focused on solving its exploration problem directly.
On a 10×10 board (100 tiles), the apple occupies just 1% of the available space. The snake can wander for hundreds of steps without finding anything. No rewards → no learning signal → no improvement.
We measured this directly. After 16,000 games, our baseline DQN on 10×10 achieved a mean score of barely 3.
We needed to solve exploration without training wheels.
What if we gave the agent a reward simply for exploring? Not for finding food — just for seeing something it had never seen before?
This is the core idea behind the Intrinsic Curiosity Module, introduced by Pathak et al. (2017).
The ICM trains two small neural networks alongside the main DQN:
The Forward Model predicts: “If I’m in state $s_t$ and take action $a_t$, what will the next state $s_{t+1}$ look like?”
The Inverse Model predicts: “If I moved from $s_t$ to $s_{t+1}$, what action did I take?”
The intrinsic reward is the Forward Model’s prediction error — its surprise. If the agent visits a new part of the board and the Forward Model fails to predict what happened next, it generates a large intrinsic reward. If the agent revisits familiar territory, the prediction error is small and the reward is minimal.
The key insight: the agent gets paid for being surprised. This transforms a sparse-reward maze into a rich landscape of curiosity, with the agent actively motivated to explore every corner of the board.
We scaled $\eta$ (the curiosity intensity weight) and found that even a tiny eta=0.01 was enough to dramatically improve exploration on the 10×10 grid.
We ran both algorithms under the same conditions — with and without ICM — across 5×5, 8×8, and 10×10 boards, tracking everything in Weights & Biases. The results were decisive.
| Run | Board | Mean Score | Record |
|---|---|---|---|
| PPO Baseline | 10×10 | ~0.2 | 3 |
| PPO + ICM | 5×5 | ~2.1 | — |
| DQN Baseline | 10×10 | ~3.0 | 36+ |
| DQN + ICM | 10×10 | ~8+ | 53+ |
PPO fundamentally struggles here for two structural reasons:
The Fatal Environment Problem
PPO’s Actor head outputs probabilities. Even if it learns that going left has a 95% chance of being correct, it still has a 5% chance of randomly picking a fatal direction. In Snake — where a single wall collision ends the game — this stochastic slippage causes the agent to “slip” and die even after it has ostensibly “learned” the rules.
DQN uses a rigid argmax. It picks the action with the single highest Q-value, every time, with zero randomness (outside of explicit epsilon-greedy exploration). Once it learns a rule, it follows it 100% of the time.
The Replay Buffer Supremacy
DQN stores every experience in a large Replay Buffer. When it accidentally discovers a brilliant 10-step path to an apple, it saves that memory and replays it thousands of times during future training batches — squeezing every bit of gradient out of each discovery.
PPO is On-Policy. It uses each batch of experiences exactly once for a gradient update, then permanently discards them. The replay buffer is not just an optimization — it is the fundamental reason DQN can learn from rare events in sparse environments.
The conclusion was clear: for a game with hard failure states and sparse rewards, the offline Value-Based DQN architecture significantly outperforms the online Policy-Gradient PPO architecture.
Even with ICM boosting DQN’s performance, we observed a bizarre pathology in the training curves: the agent would reach a record score of 50+, and then immediately start dying on Turn 1 for hundreds of games in a row.
We called this Double Catastrophic Forgetting.
Here’s what was happening:
Stage 1 — The Buffer Flood: When the snake achieves a high score (say, 50 on a 10×10 board), it generates thousands of late-game transitions — all involving a long snake navigating a nearly-full board. These transitions flood the 100,000-entry Replay Buffer, pushing out the early-game transitions (short snake on an empty board).
Stage 2 — The Q-Network Forgets: The DQN stops practicing early-game states. It starts making bad decisions on the first 5 moves of a new game, instantly hitting walls.
Stage 3 — The ICM Forgets (The Fatal Blow): The Forward Model also stops practicing early-game physics. It becomes an expert at predicting how a 50-length snake moves through a crowded board, but completely forgets what an empty board looks like. When the game resets and the snake is length 1 on a wide-open board, the Forward Model fails to predict any of the transitions. Its prediction error is massive. It generates an enormous intrinsic reward for… dying on Turn 1. The agent learns that suiciding is surprisingly profitable.
We designed a three-part solution to break the forgetting cycle.
We maintained two separate replay buffers instead of one:
maxlen=20,000): Stores only the first 50 steps of every game. By definition, only early-game experiences with a short snake on a relatively empty board. This buffer is never evicted by late-game states.capacity=100,000): Stores all transitions after step 50, optimized with priority sampling.During every training batch, we enforced a 75/25 split: 750 samples from the PER buffer, 250 from the Foundation Buffer. This mathematically guarantees the network and the ICM will always practice both early-game and late-game physics in every single update.
We replaced the standard uniform sampling in the Deep Game buffer with a SumTree-based PER.
Every time the network makes a prediction error, we calculate the Temporal Difference (TD) error and use it as the sampling priority. States where the network’s predictions were most wrong get sampled most often in future batches — the network is constantly drilling its hardest failures.
We implemented a priority cap of 1.0 to prevent death states (which generate extremely high TD errors) from monopolizing the training batch. Without this cap, the network would obsessively practice dying, dragging all Q-values negative.
We zeroed out the ICM’s intrinsic reward on the terminal step of every game:
intrinsic_reward = intrinsic_reward * (1.0 - float(done))
The game-over transition is physically discontinuous — the Forward Model cannot learn to predict it from normal movement physics. Without this mask, the massive prediction error on a death step generates a large curiosity reward, and the agent accidentally learns that dying is “surprising and therefore exciting.”
Every experiment in this project was tracked in real-time using Weights & Biases, logging per-game metrics including Mean_Score, Record, Intrinsic_Reward, and Eta (curiosity decay rate).
This allowed us to observe the pathologies as they appeared — the signature “Score: 0” spike after a high-score game, the intrinsic reward stabilizing after the terminal mask fix, and the steady mean-score climb after applying the PER priority cap.
Built with PyTorch, Weights & Biases, and a lot of dead snakes. 🐍
